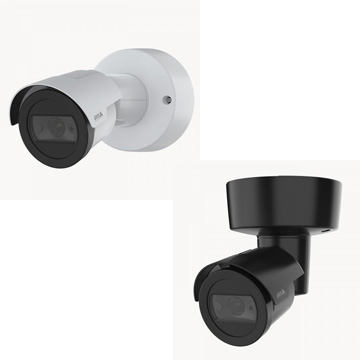

AXIS M2036-LE 4MP安讯士红外网络摄像机
AXIS M2036-LE Black AR, AU, BR, CN, EU, JP, KR, UK, US 02134-001
AXIS M2036-LE AR, AU, BR, CN, EU, JP, KR, UK, US 02125-001
Technical specifications
DATASHEET (PDF)
Models: AXIS M2036-LE / AXIS M2036-LE Black
Camera
Property description Property value
Lightfinder Lightfinder
Min illumination/ light sensitivity (Color) 0.18 lux
Min illumination/ light sensitivity (B/W) 0 lux
Image sensor CMOS
Image sensor size 1/2.7
Wide dynamic range WDR
Video
Property description Property value
Max video resolution 2304x1728
Max frames per second 25/30
Electronic image stabilization –
Lens
Property description Property value
Focal length 2.4 mm
Horizontal field of view 130 °
Vertical field of view 81 °
Optical zoom –
Compression
Property description Property value
Zipstream Yes
H.264 High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 3
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK08
IP rating IP66, IP67
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Property description Property value
Power (max) –
Power (average) –
