型号Model:AXIS Q1715 02220-001
镜头lens:Focal length 4 - 84.6 mm
Optical zoom 21
Horizontal field of view 76-3.6 °
Vertical field of view 42-2.2 °

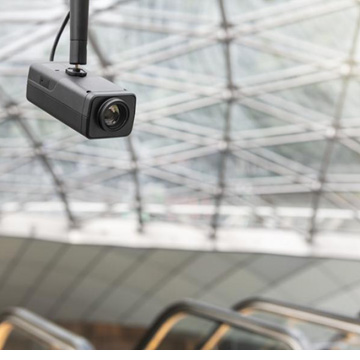

AXIS Q1715 02220-001安讯士盒子摄像机
Technical specifications
Models: AXIS Q1715
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.8
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.02 lux
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 120
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 4 - 84.6 mm
Optical zoom 21
Horizontal field of view 76-3.6 °
Vertical field of view 42-2.2 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Network
Property description Property value
PoE Class 4
Security
Property description Property value
Signed firmware Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR –
Local storage (memory card slot) Yes
Operating temperature -20 to 50 °C
Outdoor Ready –
Vandal rating –
IP rating –
Designed for repaint –
Sustainability BFR/CFR free, PVC free
Power
Property description Property value
Power (max) 13.5 W
Power (average) 12.0 W
AXIS Q1715 AR, AU, BR, CN, EU, JP, KR, UK, US 02220-001
AXIS Q1715 IN 02220-113
