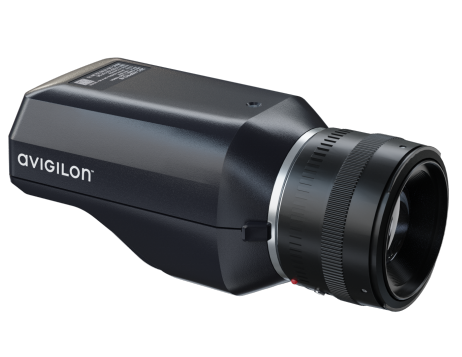

16C-H5PRO-B H5 Pro 系列摄像机
8C-H5PRO-B 8.0
16C-H5PRO-B 16.0
26C-H5PRO-B 26.0
40C-H5PRO-B 40.0
61C-H5PRO-B 61.0
LENS COMPATIBILITY
LEF2814SI Sigma 28mm f/1.4 45.7° 65.3° ✓ ✓ ○
LEFS3014SI Sigma 30mm f/1.4 42.9° N/A ✓ ✓ ○
LEF3514TA Tamron 35mm f/1.4 37.3° 54.3° ✓ ✓ ○
LEF5014SI Sigma 50mm f/1.4 28.6° 39.5° ✓ ✓ ○
LEF163528CA2 Canon 16-35mm f/2.8 37.3° - 72.8° 54.3° - 96.6° ✓ * ✓ * ○ *
LEFS183518SI Sigma 18-35mm f/1.8 37.3° - 66.5° N/A ✓ ✓ ○
LEF247028TA2 Tamron 24-70mm f/2.8 VC 19.1° - 52.4° 28.8° - 73.6° ✓ * ✓ * ○
LEF7020028TA Tamron 70-200mm f/2.8 VC 6.8° - 19.1° 10.3° - 28.8° ✓ ✓ ✓
LEF1506005TA Tamron 150-600mm f/5-6.3 VC 2.2° - 9.0° 3.4° - 13.7° ✓
* Partial occlusion may be present at wide angles on the 40 MP and 61 MP H5 Pro camera variants.
○ : Compatible

✓ : Recommended

IMAGE CONTROL
Video Compression H.264 HDSM SmartCodec, H.265 HDSM SmartCodec, Motion JPEG1
Streaming Multi-stream H.264, Multi-stream H.265, Motion JPEG
Bandwidth Management HDSM SmartCodec technology; Idle scene mode
Motion Detection Pixel and Unusual Activity Detection (UAD)
Electronic Shutter Control Automatic, Manual (1/7.5 to 1/8000 sec)
Iris Control 2 Automatic, Open, Closed
Flicker Control 60 Hz, 50 Hz
IMAGE CONTROL
White Balance Automatic, Manual
Backlight Compensation Adjustable
Privacy Zones Up to 64 zones
Audio Compression Method Opus, G.711 PCM 8 kHz
PERIPHERALS
Onboard Storage 2 x microSD/microSDHC/microSDXC slot – video speed class card required. Class V10 or better recommended. Currently
one of the two microSD card slots is available for onboard storage.
Audio Input/Output Line level input and output, A/V mini-jack (3.5 mm)
External I/O Terminals Alarm In, Alarm Out
NETWORK
Network 1000-BASE-T / 100-BASE-TX or 1000-BASE-SX / 1000-BASE-LX via SFP
Cabling Type CAT5e Cabling or Optical Fiber3
Connector RJ-45 or SFP3
Security Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based
authentication, FIPS 140-2 L1 (with optional camera license), FIPS 140-2 L3 (with optional accessory)
Protocols IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, ARP, HSTS
Streaming Protocols RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP
ONVIF4 ONVIF compliance Profile S, T and G
Device Management Protocols SNMP v2c, SNMP v3
