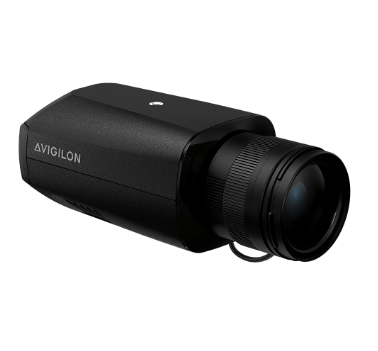

4.0C-H6X-B H6X BOX CAMERA
2.0C-H6X-B
4.0C-H6X-B
6.0C-H6X-B
8.0C-H6X-B
Enclosure Accessories
Description Ambient Temperature
Ambient Temperature
with optional ES-HD-IPM
(PoE)1
ES-HD-HWS Outdoor HD Enclosure with Heater -20 °C to +55 °C(-4 °F to 131 °F)-25 °C to +55 °C(-13 °F to 131 °F)
ES-HD-CWS Outdoor HD Enclosure with Cooling -10 °C to +55 °C(14 °F to 131 °F)-20 °C to +55 °C(-4 °F to 131 °F)
ES-HD-HWS-SM Outdoor HD Small Enclosure with Heater -20 °C to +50 °C(-4 °F to 122 °F) N/A
Accessories
USB-AC56-NA-MSI-B /
USB-AC56-EU-MSI-B USB Wi-Fi adapter
Lens Accessories
AG3Z2812TCS-MPWIR-MSI Computar 2.8-8.5mm f1.2, 1/2.7", 6MP, iCS 2.0 41° – 121°
AG3Z2812KCS-MPWIR-MSI Computar 2.8-8.5mm f1.2, 1/2.7", 5MP, P-Iris 2.0 41° – 121°
M13VG2713IR-MSI Tamron 2.7-13mm f1.4, 1/2.7", 3MP, DC Iris 2.0 26° – 122°
SL183A-MSI Theia 1.8-3mm f1.8,1/2.7", 4K, DC Iris 2.0 86° – 114°
SL940P-MSI Theia 9-40mm f1.5, 1/2.3", 4K, P-Iris 2.0 8° – 35°
M13VG850IR-MSI Tamron 8-50mm f1.6, 1/2.7, 3MP, DC Iris 2.0 6° – 38°
FG50020P.IR-MSI Ricom 3.4-9.85mm f1.86, 1/2.7, 5MP, DC Iris 2.0 33° – 102°
EG6Z0915TCS-MPWIR-MSI Computar 9-50mmf1.5, 1/1.8", 4K, iCS 2.0 7° – 34°4.0 9° – 46°6.0 9° – 46°8.0 9° – 46°
SL1250P-MSI Theia 12-50mmf1.8, 1/1.7", 4K, P-Iris 2.0 6° – 27°
4.0 9° – 38°
6.0 8° – 37°
8.0 8° – 37°
EG3Z3915KCS-MPWIR-MSI Computar 3.9-10mmf1.5, 1/1.8", 4K, P-Iris
4.0 46° – 120°
✓ 1 ✓ 1 6.0 45° – 119°
8.0 45° – 119°
EG3Z3915TCS-MPWIR-MSI Computar 3.9-10mm
f1.5, 1/1.8", 4K, iCS
4.0 46° – 120°
✓ 1 ✓ 1 6.0 45° – 119°
8.0 45° – 119°
M117VG3817IR-MSI Tamron 3.8-17mm
f1.4, 1/1.7, 4K, DC Iris
4.0 27° – 114°
6.0 26° – 113°
8.0 26° – 113°
HV03610P.IR-MSI Ricom HV03610P.IR
(3.6-10mm)
4.0 48° – 107°
6.0 47° – 105°
8.0 47° – 105°

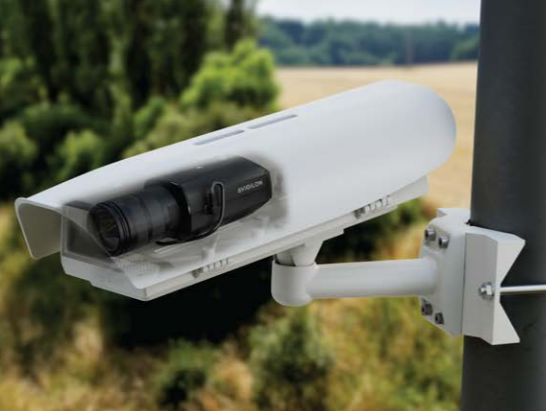

Deploy physical security your way. Whether you require short or long range coverage, the H6X Box delivers optimal deployment flexibility by letting you choose the lens that best fits your monitoring needs. Enclose the camera in a weatherproof housing* to take on the outdoors with confidence and stay effortlessly aware with onboard AdaptAI video analytics.
*Lens and housing sold separately
8MP max. resolution 60 FPS max. frame rate
-10 °C lowest operating temperature +65 °C highest operating temperature
Stay one step ahead of incidents
Quickly recognize critical events happening on your site and respond decisively. The faster you act can be enough to change the outcome of an incident. The H6X Box comes with AdaptAI video analytics so you can:
Be alerted of unusual crowds
Identify a person crawling
Blur people and vehicles in video to preserve their privacy, with the flexibility to remove it for investigations
Classify more objects such as vans, pick-up trucks and large trucks
Image Control
Day/Night Control Automatic, Manual, External
Flicker Control 60 Hz, 50 Hz
Iris Control iCS or P-iris: Automatic, Open, Closed
DC-iris: Open, Closed
White Balance Automatic, Manual
Backlight Compensation Adjustable
Image Rotation 0°, 90°, 180°, 270° including Corridor Mode
Privacy Zones Up to 64 zones
Motion Detection Pixel motion: Selectable sensitivity and threshold. Classified object detection
Tamper Detection Yes
Network
Network 1000BASE-T, RJ45 Connector, CAT5e Cabling
ONVIF ONVIF® compliance Profile S, Profile T, Profile M and Profile G (www.onvif.org)
Security Password protection, HTTPS encryption, digest authentication, WS authentication, user access log, 802.1x port based
authentication, FIPS 140-2 L1 (with optional camera license), onboard FIPS 140-2 L3 certified TPM, Secure Boot
Protocols IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, ARP,
HSTS
Streaming Protocols RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP
Device Management
Protocols
SNMP v2c, SNMP v3
Peripherals
USB Port USB 2.0
Onboard Storage Two microSD/microSDHC/microSDXC slots – video speed class card required. Class V10 or better recommended.
Auxiliary I/O
Audio Compression Method G.711 PCM 8 kHz, Opus
Audio Input/Output Line level input and output
External I/O Terminals 1 x Relay In, 1 x Relay Out, 1 x 12 VDC out at 50 mA, RS-485
RS-485 Terminal Yes
Mechanical
Dimensions (LxWxH) 122 mm x 75 mm x 63 mm; 4.8” x 3.0” x 2.5”
Weight 0.55 kg (1.2 lbs)
Body Aluminum, Plastic
Camera Mount 1/4”-20 UNC (top and bottom)
Finish Cast, powder coated, black
Electrical
Power Consumption 13 W max
Power Source PoE: IEEE802.3af Class 3 compliant
External Power VDC: 12-24 VDC ± 10%
RTC Backup Battery 3V manganese lithium
Memory 4 GB RAM,4 GB Flash
Redundant Power Seamless failover between PoE and Aux and back without interrupt in camera operation
Environmental
Operating Temperature -10 °C to +65 °C (14 °F to 149 °F)
Storage Temperature -10 °C to +70 °C (14 °F to 158 °F)
Humidity 0 - 95% non-condensing
Certifications
Certifications/Approvals UL, cUL, CE, UKCA, ROHS, RCM, KC, BIS, NOM
Safety Standards UL 62368-1, CSA 62368-1, IEC/EN 62368-1
Electromagnetic Emissions
Standards
FCC Part 15 Subpart B Class B, ICES-003 Class B, EN 55032 Class B, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3
Electromagnetic Immunity
Standards
EN 55035, EN 61000-6-1
