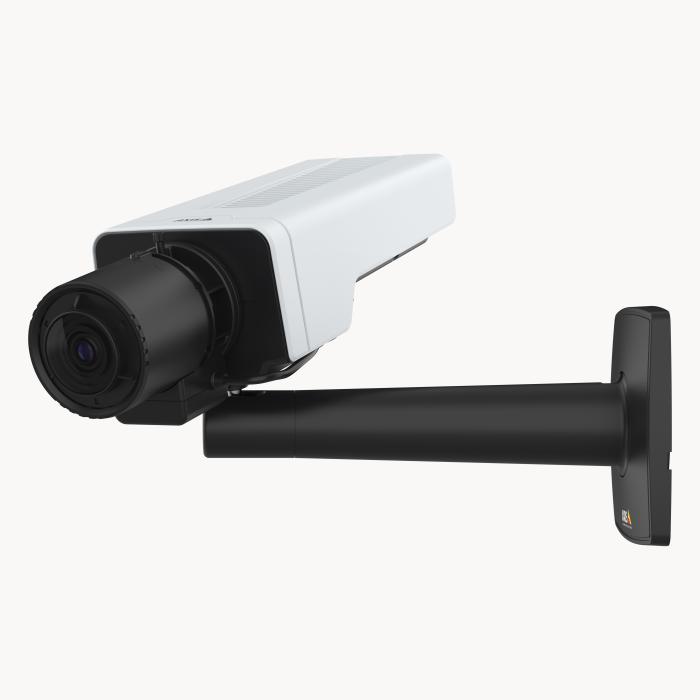

AXIS P1387 室内网络摄像机
可靠的 5MP 室内监控
5 MP 下的出色图像质量
觅光者 2.0 和 Forensic WDR
可更换镜头
深度学习分析
通过 Axis Edge Vault 实现内置网络安全
相机
属性描述 属性值
图像传感器CMOS
图像传感器尺寸 1/1.8"
觅光者 觅光者 2.0
宽动态范围 Forensic WDR
最小照度/光敏感度（颜色）0.1 lux
最小照度/光灵敏度 (B/W) 0.02 lux
视频
属性描述 属性值
最大视频分辨率 2592x1944
每秒最大帧数 50/60
电子图像稳定 有
镜片
属性描述 属性值
焦距 2.8 - 13 毫米
水平视野 112 - 24°
垂直视野 80 - 18°
镜头卡口 CS
可更换镜头 是
压缩
属性描述 属性值
Zipstream 是
H.264 基线、高、主要
H.265 是
运动 JPEG 是
声音的
属性描述 属性值
音频支持 是
网络
属性描述 属性值
PoE 3 级
无线的 -
安全
属性描述 属性值
签名固件 是
安全启动 是
一般的
属性描述 属性值
远程对焦 –
远程变焦 –
内置红外线 –
本地存储（存储卡插槽） 有
工作温度 -10 至 55 °C
户外准备 –
破坏评级 –
IP等级 –
专为重涂而设计 –
可持续发展 不含 BFR/CFR、不含 PVC
力量
属性描述 属性值
功率（最大）10.6W
功率（平均）4.3W
直流输入电压10-28V
