AXIS Q2111-E 热成像摄像机
AXIS Q2111-E 安装在定位装置上 AXIS T99A12AXIS Q2111-E 安装在壁挂支架上 AXIS TQ1003-E AXIS Q2111-E 热成像摄像机 AXIS Q2111-E 热成像摄像机正面视图 AXIS Q2111-E 热成像摄像机直角 AXIS Q2111-E 安装在定位装置上 AXIS T99A12 AXIS Q2111-E 安装在壁挂支架上 AXIS TQ1003-E AXIS Q2111-E 热成像摄像机AXIS Q2111-E 热成像摄像机正面视图

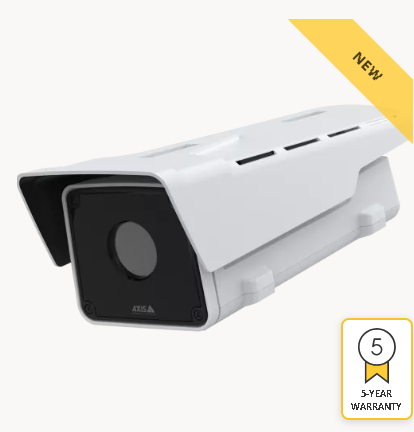

AXIS Q2111-E 热成像摄像机
AXIS Q2111-E 热成像摄像机正面视图
AXIS Q2111-E 热成像摄像机直角
AXIS Q2111-E 安装在定位装置上 AXIS T99A12
AXIS Q2111-E 安装带壁挂式 AXIS TQ1003-E
远程检测和验证
可靠的远程热检测
灵活的安装选项
支持强大的分析
四个 I/O 端口和边到边
内置网络安全功能，配备 Axis Edge Vault
这款坚固耐用的摄像机非常适合周边安全和远距离检测，可提供全天候可靠的检测和验证，同时保护隐私。凭借灵活的安装选项，它可以安装在定位装置上，以便更好地了解场景。
始终可靠的检测和验证
AXIS Q2111-E 采用热成像技术，可在所有光照条件下，甚至在烟雾和轻雾中提供全天候可靠的检测和验证，同时保护隐私。强大的传感器具有极高的热灵敏度和 60 毫米镜头，使其成为周边安全的理想选择，可捕捉远距离发生的事件。当安装在定位装置（单独出售）上时，这款坚固耐用的摄像机可提供 360° 无障碍视野，使操作员能够立即精确定位任何位置或以流畅的全景视角进行巡逻。此外，电子图像稳定 (EIS) 可确保在所有环境中提供稳定、可靠的视频。
AXIS Q2112-E Thermal Camera
slide 3 of 5
AXIS Q2101-E/AXIS Q2112-E installed with positioning unitAXIS Q2101-E/Q2112-E installed with wall mount White AXIS Q2112-E Thermal Camera viewed from its left angle AXIS Q2101-E/AXIS Q2112-E  AXIS Q2101-E/AXIS Q2112-E AXIS Q2101-E/AXIS Q2112-E installed with positioning unit AXIS Q2101-E/Q2112-E installed with wall mount White AXIS Q2112-E Thermal Camera viewed from its left angleAXIS Q2101-E/AXIS Q2112-E
White AXIS Q2112-E Thermal Camera viewed from its left angle
AXIS Q2101-E/AXIS Q2112-E
AXIS Q2101-E/AXIS Q2112-E
AXIS Q2101-E/AXIS Q2112-E installed with positioning unit
AXIS Q2101-E/Q2112-E installed with wall mount
Outstanding high-resolution detection and verification
High-resolution detection, low false alarm rate
Lens options available
Flexible mounting options
Support for powerful analytics

Built-in cybersecurity with Axis Edge Vault

Technical specifications
DATASHEET (PDF)
Variants: AXIS Q2112-E 25 mm 8.3 fps / AXIS Q2112-E 19 mm 30 fps / AXIS Q2112-E 60 mm 8.3 fps / AXIS Q2112-E 10 mm 30 fps / AXIS Q2112-E 25 mm 30 fps / AXIS Q2112-E 60 mm 30 fps / AXIS Q2112-E 35 mm 8.3 fps / AXIS Q2112-E 35 mm 30 fps / AXIS Q2112-E 19 mm 8.3 fps / AXIS Q2112-E 10 mm 8.3 fps / AXIS Q2112-E 100 mm 8.3 fps / AXIS Q2112-E 100 mm 30 fps
Camera
Property description Property value
Image sensor Uncooled microbolometer
Thermal sensitivity (NETD) <20mK @ 25C, F1.0
Thermal sensor resolution 640x480
Video
Property description Property value
Max video resolution 800x600
Max frames per second * 8.3 / 30 / 8.3 / 30 / 30 / 30 / 8.3 / 30 / 8.3 / 8.3 / 8.3 / 30
Electronic image stabilization Yes
Multiple color palettes Yes
Lens
Property description Property value
Focal length * 25 / 19 / 60 / 10 / 25 / 60 / 35 / 35 / 19 / 10 / 100 / 100 mm
Horizontal field of view * 24.1 / 31 / 10 / 63 / 24.1 / 10 / 17 / 17 / 31 / 63 / 6.2 / 6.2 °
Vertical field of view * 18.5 / 24 / 7.7 / 46 / 18.5 / 7.7 / 13 / 13 / 24 / 46 / 4.6 / 4.6 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
System Integration
Property description Property value
Audio detection Yes
Active tampering Yes
Alarm inputs/outputs 4
Serial connectors Yes
Video motion detection Yes
Network
Property description Property value
PoE Class 4
Security
Property description Property value
Signed OS Yes
General
Property description Property value
Local storage (memory card slot) Yes
Operating temperature -40 to 60 °C
Outdoor Ready Yes
IP rating IP66, IP67
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q2112-E 60 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02611-001
AXIS Q2112-E 60 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02612-001
AXIS Q2112-E 35 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02609-001
AXIS Q2112-E 35 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02610-001
AXIS Q2112-E 25 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02607-001
AXIS Q2112-E 25 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02608-001
AXIS Q2112-E 19 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02605-001
AXIS Q2112-E 19 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02606-001
AXIS Q2112-E 10 mm 8.3 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02603-001
AXIS Q2112-E 10 mm 30 fps AR, AU, BR, CN, EU, JP, KR, UK, US 02604-001
