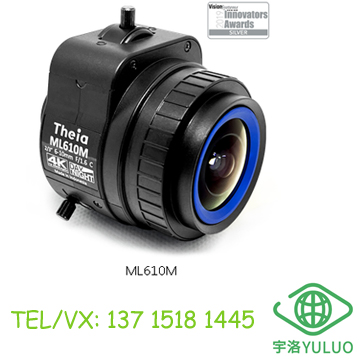

ML610M Thiea 2/3英寸可变焦4K镜头
超高分辨率可变焦镜头
6-10毫米焦距范围
真4K分辨率，1200万像素
红外校正，日夜两用
抗20-200Hz、10G/轴振动
适用于2/3英寸传感器
紧凑设计，适合狭小空间
概述
已选型号：ML610M
光圈类型：手动光圈
焦距：6-10mm 变焦
光圈值：F/1.7 至关闭
分辨率：真 4K 分辨率，1200 万像素
红外校正：440nm - 950nm
接口类型：C 接口
图像传感器尺寸：1/2.3 英寸、1/1.7 英寸及最大 2/3 英寸
Overview
Selected:
ML610M
Iris type Manual iris
Focal length 6-10mm varifocal
F/# F/1.7 to closed
Resolution true 4k resolution, 12 MP
IR correction 440 nm - 950 nm
Mount type C-mount
Image sensor size 1/2.3", 1/1.7", and up to 2/3"
Accessories
FMT-3555
Filter Mount Accessory
This filter mount can be added to the 410 series lenses to allow an external filter (such as band-pass or polarizing filter) to be added to the system. The filter mount works with lenses with 35mm front barrel diameter and is held in place with 3 sharp point set screws. It will accept filters with M55x0.75 threads. Filters are not provided by Theia Technologies.
Part FMT-3555: High performance aluminum filter mount for use with lenses:
SL410, TL410, ML410
ML610
SL1250, TL1250 *
MY23F
*special care required when installing filters to prevent damage to the motors
View FMT-3555 CAD Data
KIT-9010
Part KIT-9010 Thumbscrew replacement kit for:
SL410M, SL410A, SL410P
ML410M
ML610M
The kit includes 2x M2x5 set screws, 2x M2x7 set screws, 2x M2x5 button head screw and Allen keys.
Lenses
theia-ML610M-Transparent-1000x1000
Selected: ML610M
6-10mm, 4k 12mpx, Day/Night, manual iris, 2/3" format C mount lens
