AXIS P3747-PLVE 全景摄像机
多向摄像机传感器 3-1 多向摄像机壁挂式白色 AXIS P3747-PLVE 全景摄像机从其底部角度观察多向摄像机传感器均匀分布多向摄像机传感器 3-1 多向摄像机壁挂式白色 AXIS P3747-PLVE 全景摄像机从其底部角度观察多向摄像机传感器均匀分布
白色 AXIS P3747-PLVE 全景摄像机从其底部角度观察
4x5 MP 多向，带 AI 分析
4*5 MP，每通道 20 fps
远程平移、倾斜、滚动、缩放 (PTRZ)
支持强大的分析
360° 红外照明，带单独控制的 LED
内置网络安全，配备 Axis Edge Vault
AXIS P3747-PLVE Panoramic Camera
multidirectional camera sensors 3-1multidirectional camera mounted wallmount White AXIS P3747-PLVE panoramic Camera viewed from its bottom angle multidirectional camera sensors evenly spread multidirectional camera sensors 3-1 multidirectional camera mounted wallmount White AXIS P3747-PLVE panoramic Camera viewed from its bottom anglemultidirectional camera sensors evenly spread

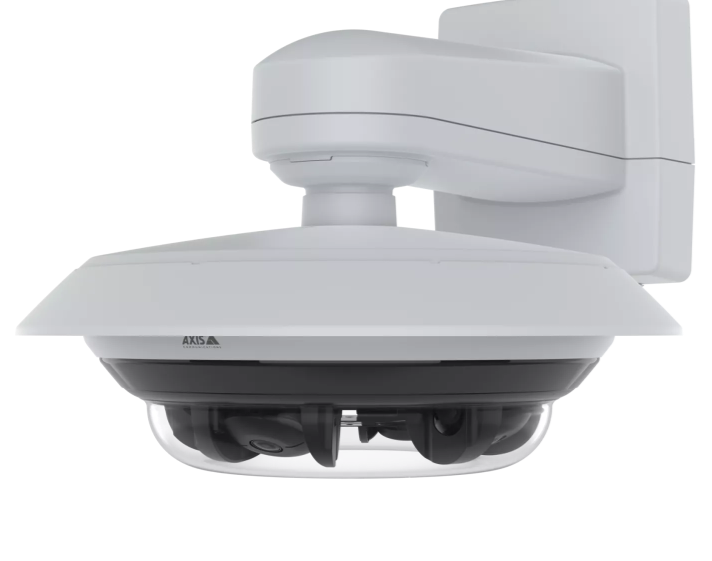

White AXIS P3747-PLVE panoramic Camera viewed from its bottom angle
4x5 MP multidirectional with AI analytics
4*5 MP at 20 fps per channel
Remote pan, tilt, roll, zoom (PTRZ)
Support for powerful analytics
360° IR illumination with individually controlled LEDs
Built-in cybersecurity with Axis Edge Vault
Technical specifications
DATASHEET (PDF)
Variants: AXIS P3747-PLVE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.78"
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.09 lux
Video
Property description Property value
Max video resolution 2592x1944
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 3.18 - 7.42 mm
Horizontal field of view 360 °
Vertical field of view 71.5-30.0 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Motion JPEG Yes
Audio
Property description Property value
Audio Support Yes
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Sustainability BFR/CFR free, PVC free
Mounts
AXIS TP1001-E Wall-and-Pole Mount with AXIS T94K01D Pendant Kit
Robust mount for dome cameras
Requires additional accessory
AXIS TP3107 Pendant Kit
Ideal for indoor and soffit installations
AXIS TP3108-E Pendant Kit
For outdoor use
AXIS P3747-PLVE AR, AU, BR, CN, EU, IN, JP, KR, UK, US 02897-001
